Customizable large-capacity 200L~10000L reverse osmosis industrial pure water treatment
Reverse osmosis (RO) is a kind of membrane separation process driven by pressure gradient. It can effectively remove dissolved salt colloids and organic matters in water like molecular filter.
The reverse osmosis process is the reverse process of natural osmosis. In order to produce reverse osmosis process, it is necessary to use water pump to exert pressure on saline solution to overcome its natural osmotic pressure, so as to make water pass through the reverse osmosis membrane; At the same time, in order to prevent salt impurities in raw water from focusing on the membrane surface, concentrated water should continuously wash the membrane surface during operation, and take the impurities from the concentrated water and membrane surface to realize the whole process of reverse osmosis desalination and purification.

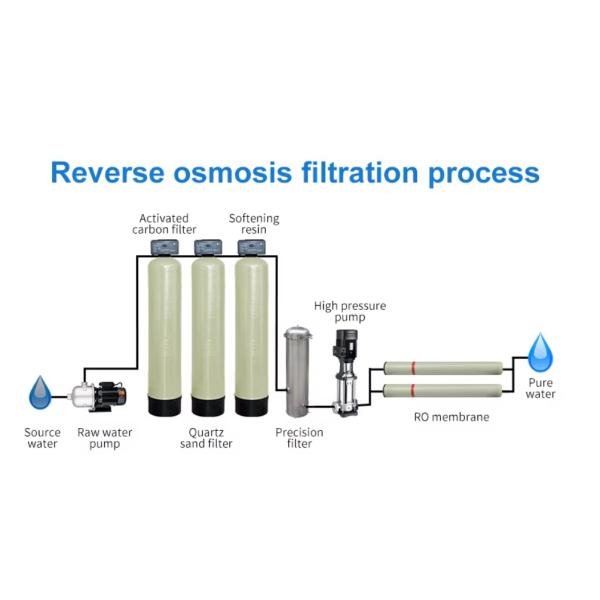

Raw Water → Pressurized Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Tank → Secondary RO → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter → Water Point
III.RO Feed Water Quality
| Item | Specification |
| Turbidity | < 1 NTU |
| TDS | < 1000mg/L |
| SDI | < 5 |
| PH | 6-8 |
| Residual Chlorine | < 0.1mg/L |
| COD | < 3mg/L |
| Temperature | 4 ℃ -35 ℃ |
| Iron | <0.1mg/L |
| Manganese | 0.05mg/L |
FAQ
Q:Why did I choose your product?
A:We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q:How long does it usually take for your products to ship?
A:Generally, the delivery time is 1-7working days(depend on raw materials stocking).
Q:Do you offer OEM&ODM services?
A: Yes. We can customize the LOGO and products according to your needs.
Q:Can I get a cheaper price?
A:Of course, please contact us, we can give you a cheaper price.
Q:What if the product breaks down in the future?
A:Don't worry, we offer a very long warranty,.
Q:what can you buy from us?
A:Carbon Filter, Filter Housing, Reverse Osmosis Water Purifier System, Automatic Filter Softener Valve
Guidelines for getting a proper quotation:
1. Tell us the production capacity you want(500L/H,1T/H, 2T/H......)?
2. What is your source water(tap water/underground water....)?
3. What is the product water used for(drinking /bottled water....)?
4. If you have the water report, please send us.
