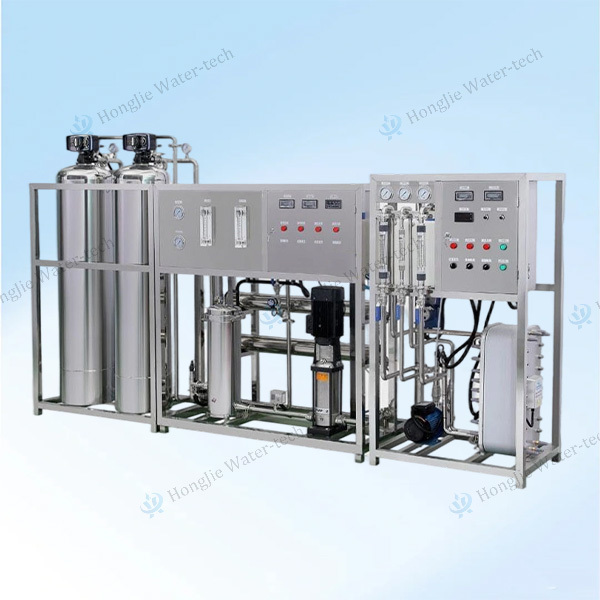

Automatic operation Stainless Steel water pump 3tons/h RO equipment
I. RO System Description
Reverse osmosis technology is a physical separation process for water purification through a semi-permeable membrane. Its core principle is to utilize the selective permeability of the semi-permeable membrane. Driven by a pressure higher than the osmotic pressure of the solution, water molecules are allowed to pass through the membrane, while impurities such as ions, organic matters, colloids, bacteria, and viruses in the water are retained, thereby achieving water purification.
II. Process and Specifications of HJ-RO3T
Raw Water→Raw water tank→Booster Pump→Quartz sand filter→Active Carbon filter→Softener→Precision filter-Pressure pump→Reverse Osmosis membrane→Pure water tank-Pure water output
| Deatails of HJ-RO3T process equipment |
| Name | Container | Brand | Usage |
| Booster Pump | SUS-304 | CNP | Provide initial water source power |
| Quartz sand filter | Stainless steel, carbon steel,or FRP | China | Provide pre-treated and purified water source |
| Active Carbon filter | Stainless steel, carbon steel, or FRP | China | Remove sediments, manganese, rust, colloidal substances, and other particles larger than 20 μm |
| Softener | SUS-304 | China | Eliminates calcium ions (Ca²⁺) and magnesium ions (Mg²⁺) |
| Precision Filter | SUS-304 | China | Remove fine particles and tiny colloidal particles from water, reducing its turbidity to 1 degree |
| Intermediate Tank | SUS-304 | China | Temporarily stores the effluent from the previous treatment process |
| Pressure pump | SUS-304 | CNP | Pressurizes and delivers the treated purified water to each water-using point |
| RO Membrane | BW30PRO-365 | USA,Dupont | Removes dissolved salts, organic matters, bacteria, viruses and other impurities from water to produce high-purity purified water. |
III. Design Advantages
Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
Dual Sterilization Options: Choose between ambient temperature or hot water disinfection systems to meet hygiene standards.
Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.
Product display
VI Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
